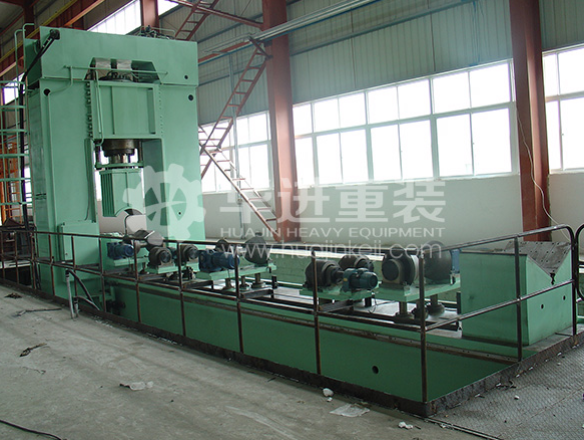

Nowadays, many people want to use a steel pipe straightening machine. The editor has introduced this product many times before, but do you know the workflow of a steel pipe straightening machine? I believe many people are not clear about it. In order to help everyone understand it clearly, the following is an introduction to the relevant process.
1. Under normal use, everyone needs to place the steel pipe straightening machine on the positioning bracket of the straightening machine, then start it, and the straightening machine will enter the active straightening cycle process.
2. In the process of using a straightening machine to straighten the workpiece, the main method is to use a cylinder to perform linear motion, driving both sides to reverse to the top together. If the workpiece is positioned by the outer circle, the cylinder moves in a straight line to drive the conflicting wheels on both sides to lower, clamping and positioning the workpiece to measure the reference.
3. At the same time, under the driving effect of the servo speed control motor of the straightening machine, the reducer reverses and drives the workpiece and pulse encoder to rotate. The constant contact measurement equipment detects the appearance runout (TIR value) of the measured point position of the workpiece. The differential transformer displacement sensor with small signal amplification function transmits the detected data along with the phase data collected by the pulse encoder to the data acquisition system of the accounting machine.
4. Then, by calculating the detailed bending degree of the workpiece, the detection data is processed by the measurement and control system, and the control parameters for straightening and correction are provided. Then, the straightening machine PLC controls the servo speed control motor to drive the reverse to the top or collision wheel, so that the direction of the workpiece bending point is vertically upward.
5. Follow the corresponding action of the hydraulic cylinder to drive the straightening machine head to press down the workpiece and complete a straightening cycle. After re measurement, if the straightness of the workpiece meets the requirements, the straightening machine completes the straightening cycle and emits an audible and visual alarm signal. If the straightness is still unsatisfactory, the above straightening cycle process needs to be continued.
The above is an introduction to the workflow of the steel pipe straightening machine. You should have a clear understanding of it, and I hope my sharing can help everyone.
