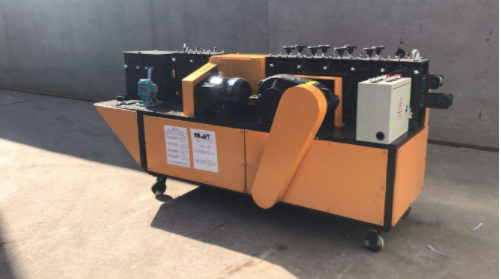

Steel pipe straightening machine is a mechanical equipment for the maintenance and repair of steel pipe scaffolding in engineering construction. It is suitable for straightening and repairing bent and deformed steel pipe scaffolding and other pipe fittings during construction. The surface of the straightened steel pipe has no indentation or shrinkage conditions,
Better than the standards formulated by the Ministry of Housing and Urban Rural Development.
1. Intermittent steel pipe speed or steel pipe rotation
Reason: Loose rolling.
Solution: Tighten the screw spring of the extruder.
2. The steel pipe does not move forward
Reason: The diameter of the steel pipe exceeds the equipment specifications, or the steel pipe has welding scars or dead bends; The motor does not rotate, lacks power, or has high motor noise; Loose transmission belt.
Solution: Press and hold the reverse power switch of the steel pipe straightening machine to withdraw the steel pipe, and manually make it to solve the welding slag or dead bending on the steel pipe; If the motor does not rotate, check if there is a phase loss in the three-phase voltage. If the motor does not rotate or lacks power due to low working voltage, based on
Specific situation handling; Loose transmission belt can moderately adjust the tension level of the transmission belt.
3. Unclean anti rust treatment of steel pipes
Reason: The steel brush is severely damaged: the anti rust treatment cylinder is stuck.
Solution: If the steel brush is severely damaged, the steel brush head should be immediately replaced; If the anti rust treatment cylinder is stuck, the rolling bearings of the anti rust treatment cylinder should be replaced.
Price of steel pipe straightening machine
4. The paint box does not rotate
Reason: The top wire of the single chain wheel of the steel pipe straightening machine is loose; The single chain wheel square key is missing.
Solution: If the top wire is loose, it should be tightened. If the square key is lost, it should be reinstalled.
5. Steel pipes without paint or with poor actual paint effect
Reason: The total flow rate of paint is small or the paint is too thick, resulting in the paint being unable to be brushed evenly; There is no management center for the area where the paint brush is applied.
Solution: Maintenance method: Rotate the total flow knob of the liquid pump and adjust the total flow size; Adjust the paint concentration value according to normal manual production and brushing of paint; Adjust the brush position or replace it with a new one based on the precise positioning of the extruder screw using the brush.
